Description

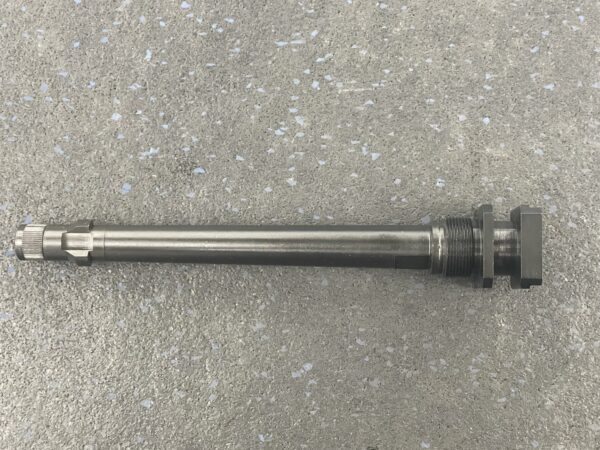

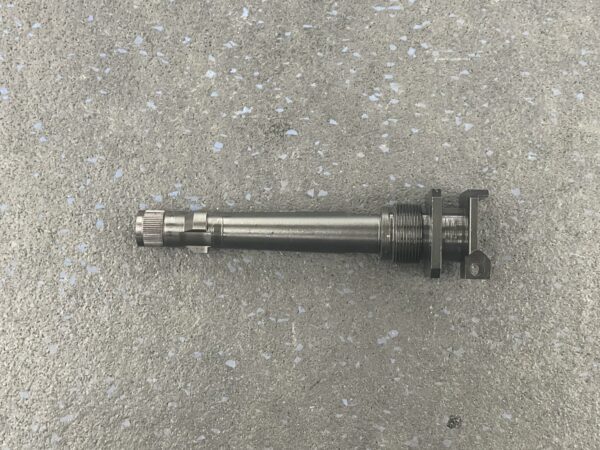

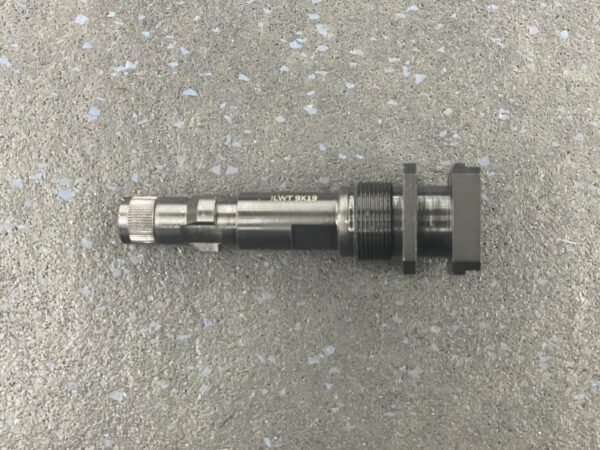

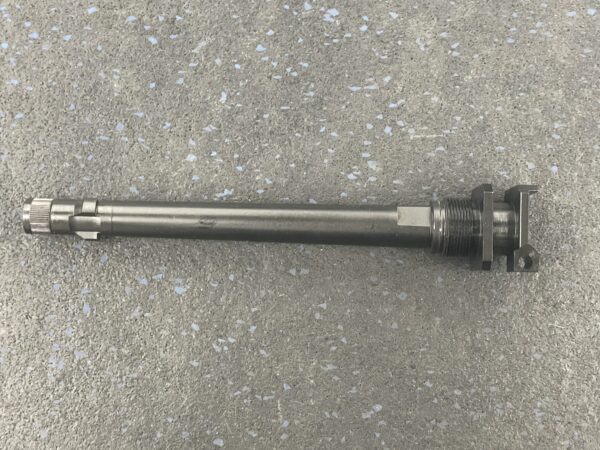

ILWT Custom 3.5, 4.1, 5.3 “and 8” Barrel assemblies comes with a pre-installed ILWT trunnion.
Both, 3-lug and 1/2-28 suppressor interfaces are machined directly into the bbl.
Designed to be used in conjunction w/ factory hand-guards as grunions are threaded to accept factory locking nut.
All machining/clocking processes are already done for you.
No machining the extractor relief, no sending weapon out for bbl/trunnion install.
These are brand-new ILWT U.S. made custom components, not recycled/re-threaded oem parts.
Barrels:
–
– 1/10 button rifling.

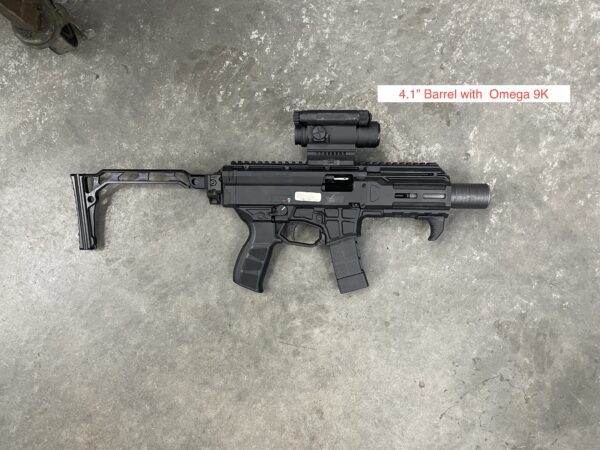

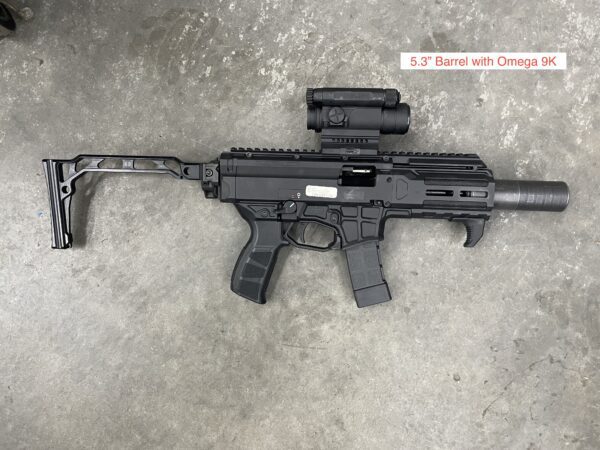

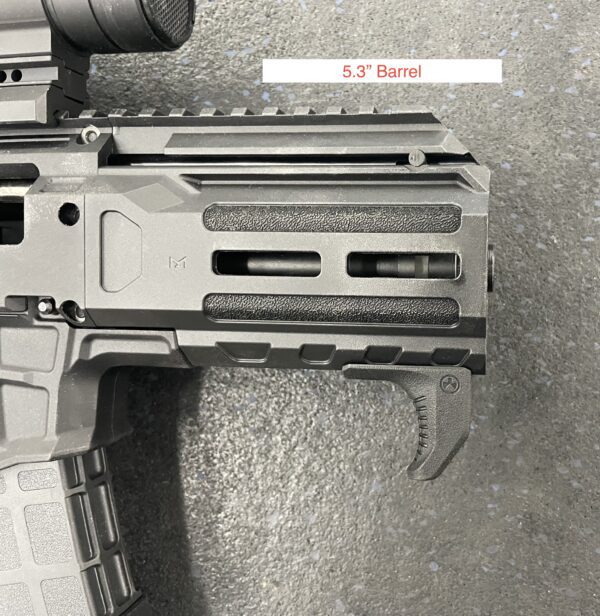

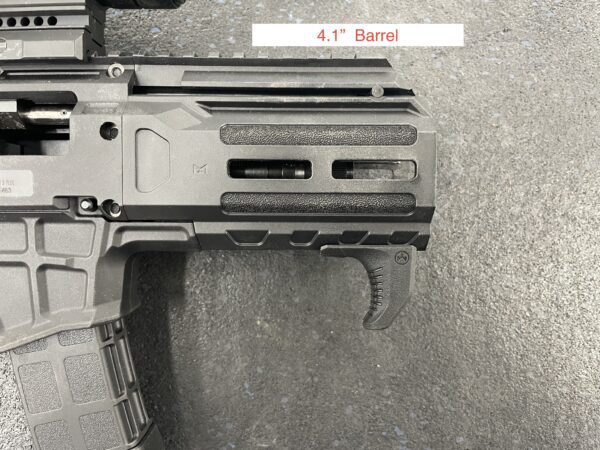

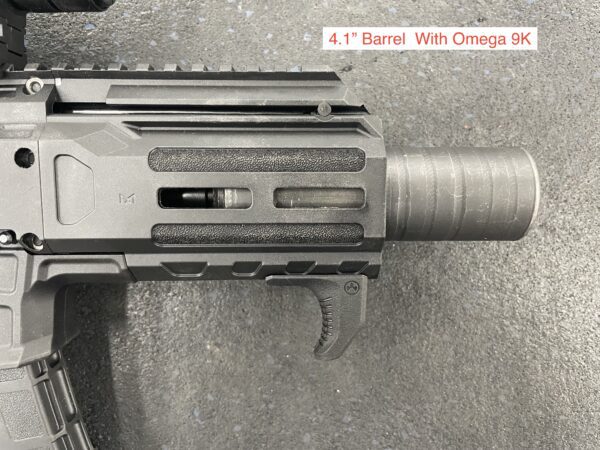

– 3.5, 4.1, 5.3″ or 8″ OAL
– Custom tapered profile, for aesthetics
– Propriety chamber dimensions for accuracy
– All 1/2-28 threads are C2A ring-gauged for precise QC, and correct interfacing with 1/2-28 (C2A industry-standard) suppressors.
– 3-Lug held to w/in 0.0005″ tolerance.
– Hard Melonite finish for durability & longevity.
– Wrench flats
Suppressor attachment points:

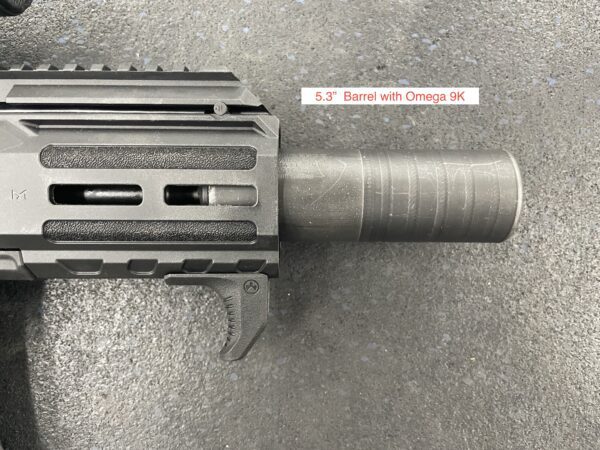

– HK type 3-lug adapter, machined directly into barrel, concentric with bore.
– 1/2-28 muzzle threads, single-point threaded, concentric with bore.
– Thread protector included. TP has recessed serrations, and correct shoulder OD for stabilizing 3-lug suppressor.
Trunnions:
– CNC Machined from ordnancegrade steel.
– Vacuum Controlled Heat-Treatment for correct hardness and resilience.
– Black-oxide finish.
-Semi auto configuration
Assembly:
-Correctly torqued and staked
-Correct bbl/trunnion Extractor-Relief alignment.
* Designed for use w/ Factory hand guard
We use the tightest of tolerances and highest quality control.
All barrels are proudly made in the USA and engraved with ILWT.
All NFA RULES APPLY
Socket rental is available for removal of factory hand guard. A $100.00 deposit is required and will be refunded once it is returned. Customer responsible for shipping cost return and socket must be shipped back within one week of receipt.
I do not accept returns on barrels due to liability and cannot sell them as new once they are shipped out and returned. If there is a function issue obviously I will make that right if it is due to my product.
There is no additional cost for shipping it is included in the price of all listed parts. Insurance is optional and separate, there is a box at the bottom of the checkout page where you can accept or opt out of the insurance. ILWT cannot be responsible for lost or mishandled shipments once they are dropped to USPS. If you checkout without requesting insurance your item will be sent with only the amount afforded by USPS for your particular shipment which may not be anything for small items and up to $100.00 for some priority packages.Insurance will not let me file a claim if it is showing delivered so please make sure you put in the proper address or desire signature confirmation for an extra fee. By placing the order you acknowledge and accept this.
As with any firearm parts installation by qualified gunsmith is highly recommended
DISCLAIMER: “SCORPION” & “3+” are federally registered trademark of CZ Firearms Inc.
Neither ILWT, LLC nor this website are affiliated in any manner with, or otherwise endorsed by, CZ Firearms Inc.
The use of “SCORPION” & “3+” on this page is merely to advertise the sale of “SCORPION 3+” type barrels, parts, or components, manufactured by ILWT LLC.
Additional information
Weight | 9.55 oz |
---|---|
Dimensions | 7 × 2 × 2 in |
LENGTH | 3.5, 4.1", 5.3", 8", Socket rental |
