Description
Barrels will be back in stock ~ December 16, 2024
Add a Factory Sig MPX PCC 16″ hand guard for an extra $50.00 while supplies last with purchase of one of our carbine barrels. Option in drop down below, not available for purchase without carbine barrel.
For barrels equipped with the adjustable plug please see directions HERE
Five adjustment positions;
0.) No Gas
1.).0400
2.).0469
3.).0520
4.).0625
This adjusts with a simple turn of the plug. With either an allen wrench or adjustable/box wrench. When the number is at the 12:00 position that is the port size it is on
Different setups require different amounts of gas depending on the actual gun itself, spring rate, suppressor generated back pressure and ammunition. This plug allows you the ability to โtuneโ your setup with the last amount of gas necessary to function, reducing gas feedback to the shooter. Your best method for tuning is to start on the largest port working backwards until the gun does not function then go up one click. You may need to adjust to more gas as the gun gets dirtier through the cycle.There is no one setting I can suggest for your setup with all the variables, it will require some testing by the end user.
The plug insert is a consumable part and will erode over time as it is subjected to the hot chamber gasses which act as a type of plasma cutter. It will try to match the size of the port to the plug and erode the steel. this slows and still works as a funnel until eventually working all the way through. Erosion depends heavily on ammunition choice and suppression back pressure. There is not an alloy that I can machine that will prevent this

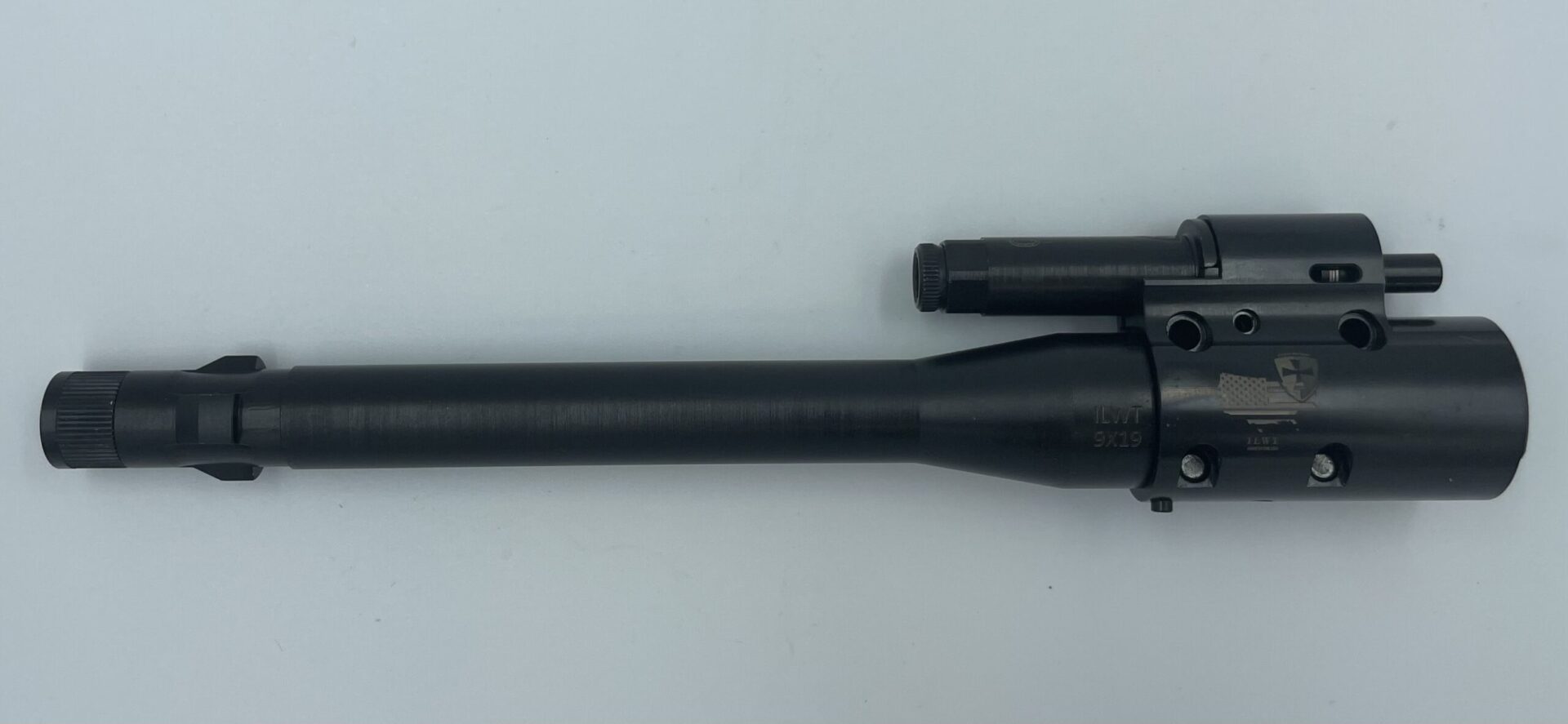

Gen-2 MPX-type replacement Drop-in Barrel & Gas Block assembly:
Barrel assembliesย ย are available in 10.5″, 12.5″ 14.5″ and 16.25″ with 1/2-28 concentric threads for suppressor use or attaching a muzzle brake/flash hider or other muzzle device of your choice Thread protector is included.
-Barrel twist rate is 1:10
-nitride finish
-Barrel weights are for assembled barrel with thread protector
16.25″ barrel weighs=1 LB 8.85 ounces
14.5″ barrel weighs=1lb 6.45 ounces
12.5″ barrel weighs=1lb 4.45 ounces
10.5″ barrel weighs=1lb 3 ounces
Please use drop-down menu for barrel length option, when ordering.
I do not accept returns on barrels due to liability and cannot sell them as new once they are shipped out and returned. If there is a function issue obviously I will make that right if it is due to my product. Please, please, please make sure the barrel length and configuration is the proper one for your platform. I want people to be happy with their purchase and get the proper barrel for their platform in the length that is best suited to their purpose. If unsure please contact me first and I can possibly help with identification and input.
We use the tightest of tolerances and highest quality control.
All barrels and gas-blocks are proudly made in the USA and engraved ILWT.I do not accept returns on barrels due to liability and cannot sell them as new once they are shipped out and returned. If there is a function issue obviously I will make that right if it is due to my product.
There is no additional cost for shipping it is included in the price of all listed parts.ย Insurance is optional and separate, there is a box at the bottom of the checkout page where you can accept or opt out of the insurance.ย ILWT cannot be responsible for lost or mishandled shipments once they are dropped to USPS. If you checkout without requesting insurance your item will be sent with only the amount afforded by USPS for your particular shipment which may not be anything for small items and up to $100.00 for some priority packages.Insurance will not let me file a claim if it is showing delivered so please make sure you put in the proper address or desire signature confirmation for an extra fee. By placing the order you acknowledge and accept this.
*As with any barrel swap, have a qualified gunsmith check head-spacing before firing.
If you have questions or wish to share information and have Facebook you can join this group HERE
DISCLAIMER: โMPXโ is a federally registered trademark of SIG SAUER, Inc. and is one of many trademarks owned by SIG SAUER, Inc.
Neither ILWT, LLC nor this website are affiliated in any manner with, or otherwise endorsed by, SIG SAUER, Inc.
The use of โMPXโ on this page is merely to advertise the sale of MPX type barrels, parts, or components.
Additional information
Weight | N/A |
---|---|
configuration | 10.5" with 1/2-28 tpi, 10.5 with 1/2-28 tpi and adjustable gas plug, 12.5" with 1/2-28 tpi, 12.5 with 1/2-28 tip and adjustable gas plug, 14.5" with 1/2-28 threads, 14.5" with 1/2-28 threads w/adjustable gas plug, 14.5 with Lantac Keymo+P&W + Adjustable Plug, 14.5 with tri lug adapter+P&W+Adjustable Plug, 16.25" with 1/2-28 threads, 16.25"with 1/2-28 threads w/adjustable gas plug, Add Ion Bond, Add 16" Sig OEM PCC Hand Guard with barrel order |
1 review for Gen II / Gen III ILWT MPX-type ‘CARBINE’ Barrels w/Gasblock
Only logged in customers who have purchased this product may leave a review.
Returns and Exchanges
There are a few important things to keep in mind when returning a product you purchased.You can return unwanted items by post within 7 working days of receipt of your goods.Barrels may only be returned if they are unused and marked as returnable in description due to insurance and liability restrictions. If used or labelled as non returnable then repair/replacement only apply for function issues. .
- Only items that have been produced by us.Items manufactured by others will need to be addressed by the manufacturer
- Please ensure that the item you are returning is repackaged with all elements.
imcdog4u
Great barrel, it actually fits tighter than the OEM Sig barrel, which is awesome! Zero did’t change either. Groups are nice and tight..I couldn’t be happier! If you’re on the fence trying to decide, don’t wait…you need this! I couldn’t out shoot the barrel, it was flawless. Oh, and it shipped the same day I ordered it!
