New
Description
Newer griffin tri lug mounts may not work with this tri lug assembly. Older Griffin and all other manufacturer products that are in spec are not an issue
Thread protector included
The extended base overall all length 2.15″ long, the additional length is in the base. I am clarifying this as someone has stated that it is confusing, the forward section with lugs is the same dimensions as the regular hk spec Tri Lug so fitment with suppressors will be unaffected, the rear has been extended to gain extra length for clearance and to make legal limit for people desiring a Tri Lug for pin and weld on their 14.5″ carbine barrels.
Now can be used with Stribog Factory Barrels
Due to request the base is now larger diameter and has flats for a 5/8″ Wrench for ease of install

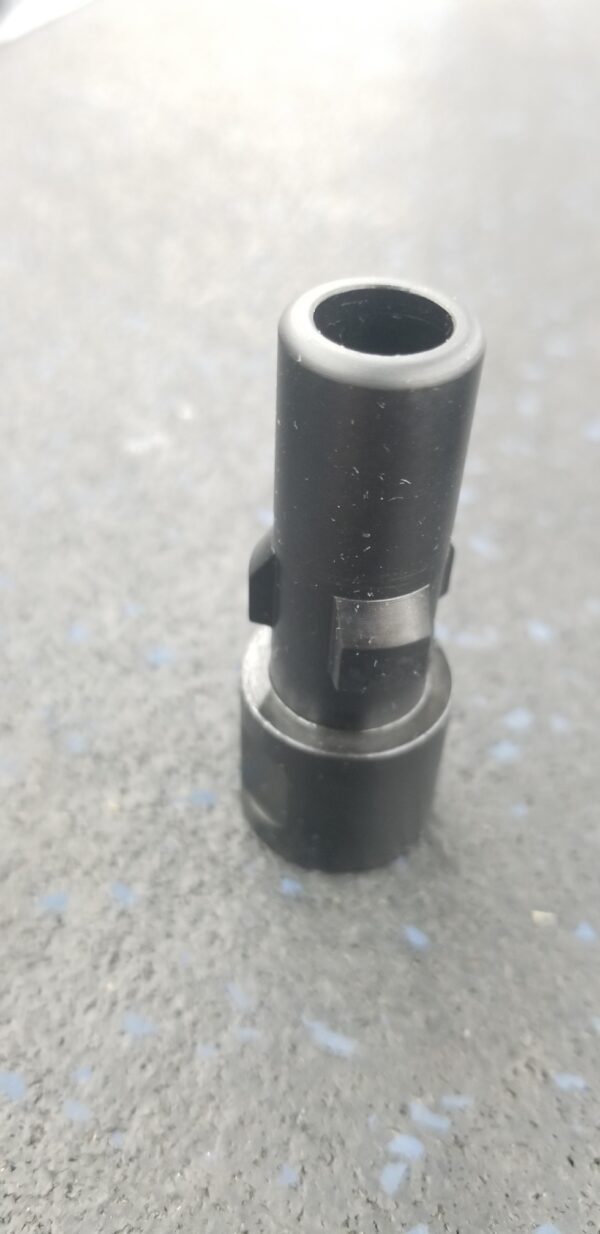

HK style 3-Lug Suppressor adapter.
– Precisely machined from 4140 Steel.
– Identical OD dimensions to factory HK 3-lug. All HK style 3-lug suppressors will work/fit correctly.
-Tolerances held to 0.0005″
-Nitrided 4140 Steel
– Internal single-point 1/2-28 threads for install. 1/2-28 threads are .690″ deep.
– 3-Lug and 1/2-28 threads are concentric with bore for suppressor use.
– There is no additional cost for shipping it is included in the price of all listed parts. If you would like special services for shipping such as insurance or signature confirmation please make an account on our site and contact us for a shipping quote. ILWT cannot be responsible for lost or mishandled shipments once they are dropped to USPS.
-Base is extended for unique and custom installation needs (like tubular magazine rifles, or getting ‘just’ the right custom fit w/ your hand-guard)
There is no additional cost for shipping it is included in the price of all listed parts. Insurance is optional and separate, there is a box at the bottom of the checkout page where you can accept or opt out of the insurance. ILWT cannot be responsible for lost or mishandled shipments once they are dropped to USPS. If you checkout without requesting insurance your item will be sent with only the amount afforded by USPS for your particular shipment which may not be anything for small items and up to $100.00 for some priority packages. By placing the order you acknowledge and accept this.
We use the tightest of tolerances and highest quality control.
All Adapters are proudly made in the USA.
Additional information
| Weight | 3 oz |
|---|---|
| Dimensions | 7.5 × 5 × .5 in |
| Configuration | Extra extended base 1/2-28, Extra extended base with external 1/2-28 threads |
2 reviews for HK Style Extended Base 3-Lug Suppressor adapter. “Navy”
Only logged in customers who have purchased this product may leave a review.
Returns and Exchanges
There are a few important things to keep in mind when returning a product you purchased.You can return unwanted items by post within 7 working days of receipt of your goods.Barrels may only be returned if they are unused and marked as returnable in description due to insurance and liability restrictions. If used or labelled as non returnable then repair/replacement only apply for function issues. .
- Only items that have been produced by us.Items manufactured by others will need to be addressed by the manufacturer
- Please ensure that the item you are returning is repackaged with all elements.
Ship your item back to Us
Contact us for returns and information prior to shipping.Related Products
Proper screws for the Stribog Ejector. These are often buggered or broken during removal.Nice to have as spares. Two in each package. Packs of 4...
$10.00
Select options
This product has multiple variants. The options may be chosen on the product page
Both 6.3″ 1/2-28 tpi and 7.4″ Tri Lug with 1/2-28 tpi back in stock and shipping as of 05/13/2024 The 7.4″ fit the full size...
$200.00 – $250.00
Select options
This product has multiple variants. The options may be chosen on the product page
13.5 x 1 LH specifically made for MPX Type Tapered Barrels now available in drop down. Does not require taper ring! Newer griffin tri lug...
$46.00 – $65.00
Select options
This product has multiple variants. The options may be chosen on the product page
Two line text engraving on barrel. Please include text you would like engraved in the notes section of the order. If you are wanting to...
$10.00
Add to cart
Easily damaged during disassembly and cleaning. Package of 4 Installation of parts by qualified gunsmith recommended There is no additional cost for shipping it is...
$16.00
Add to cart
3-Lug Adapters & Muzzle Devices, Mac 10 Mac 11 Barrels, Parts for MPX, Parts for Scorpion EVO and 3+, Shop
griffin tri lug mounts may not work with this tri lug assembly. other manufacturer products that are in spec are not an issue. I have...
$55.00 – $70.00
Select options
This product has multiple variants. The options may be chosen on the product page
ILWT Muzzle-Thread Protector – 1/2-28 internal Threads – Melonite Finish -.750 Thread depth – 1.00″ OAL -.625″ Outer Diameter at shoulder – Knurled for easy...
$15.00 – $20.00
Select options
This product has multiple variants. The options may be chosen on the product page
Often lost when disassembling the gun leading to a great treasure hunt. Package of 4 each front and rear clips, 8 clips total Due to...
$18.00
Add to cart
3-Lug Adapters & Muzzle Devices, Mac 10 Mac 11 Barrels, Parts for MPX, Parts for Scorpion EVO and 3+, Stribog
Designed primarily for those who run a short tri lug barrel with longer forearm to tuck a suppressor and wish to shoot non suppressed without...
$85.00 – $105.00
Select options
This product has multiple variants. The options may be chosen on the product page
ILWT Muzzle-Thread Protector for use with all our barrels – Manufactured from 4140 Steel – 1/2-28 internal Threads – Melonite Finish -.438 (for use with...
$15.00
Add to cart
Redesigned wrench to handle the increased torque spec of the newer Stribog and designed to use a 15/16 socket and ratchet or wrench (not included)....
$42.00
Add to cart
The numbers listed in inventory are what is left and in stock ready for shipping. I have a limited run of carbine barrels for the...
$290.00 – $390.00
Select options
This product has multiple variants. The options may be chosen on the product page
Great upgrade to replace factory units. The factory retainer is often lost during disassembly, this eliminates in the clip search and makes takedown and reassembly...
$20.00
Select options
This product has multiple variants. The options may be chosen on the product page
Adapter for standard MPX Barrels with 13.5 x 1 LH threads an tapered profile. This will allow your muzzle devices to have a flat areas...
$20.00
Add to cart
Replacement or spare hardened and black oxide barrel retaining nuts for the Stribog. These will fit all models but have the larger slots of the...
$15.00
Select options
This product has multiple variants. The options may be chosen on the product page
Douglas
HK Style Extended Base 3-Lug Suppressor adapter – performs as advertised! I could not attach M-LOK accessories at the end of my handguard. With a standard-length 3-lug adapter, the suppressor would bump into the forward M-LOK nuts just before engaging. The extended base of this adapter gives the additional clearance for everything to work together. Machining and finish are very nice and suppressor lockup is good. Thanks ILWT!
tjwhiteiii
Recently purchased HK style extended 3-lug suppressor adapter. For installation on Colt 9mm SMG. Fit and finish of this adapter is excellent. Suppressor fits better than on my HK genuine German MP5 barrel. The transaction was efficient and shipping was quick.
Definitely recommend In Lead We Trust , top notch Company.
Thank you,
Thomas
